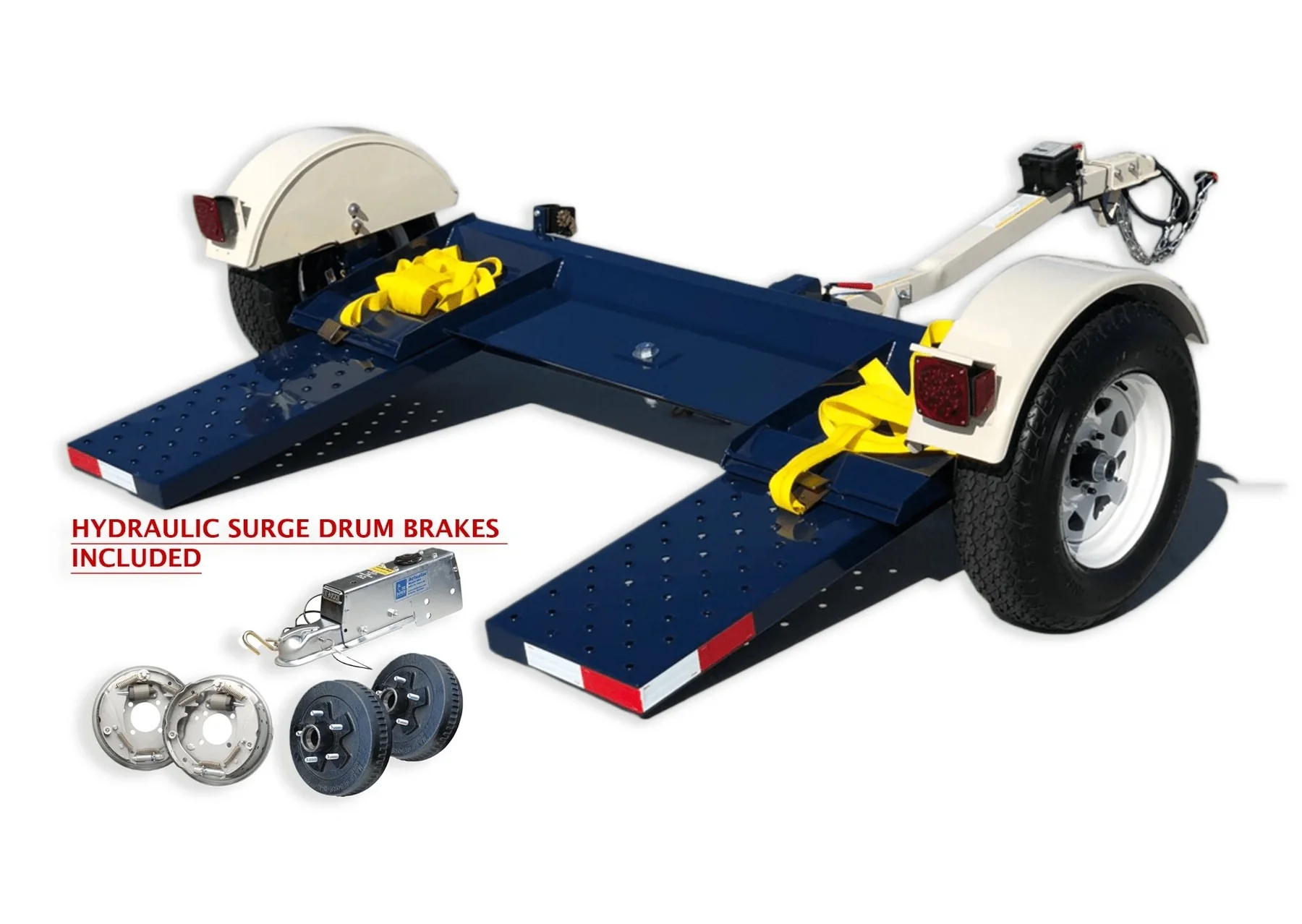

Tow Dolly with Hydraulic Surge Brakes

Haul your car, truck, or van effortlessly with the Tow Max Dolly with Surge Drum Brakes. Engineered for safety and simplicity, this dolly uses a self-contained hydraulic surge braking system for powerful stopping performance—no brake controller required. Whether towing with an RV, truck, or SUV, this dolly gives you control and confidence.

Why Choose Surge Brakes?

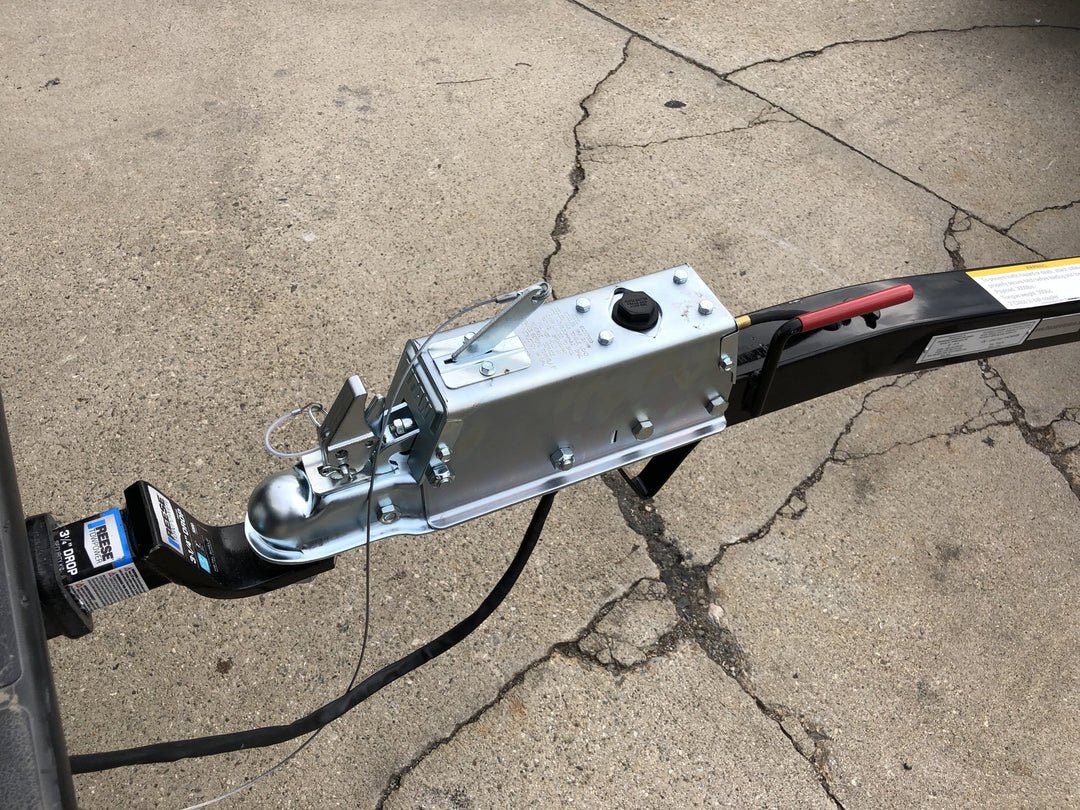

The 10″ hydraulic drum brake system is powered by inertia through a surge actuator. As your towing vehicle decelerates, the dolly activates its brakes automatically using DOT 3 brake fluid. Smooth, responsive, and independent of auxiliary brake controllers, it’s ideal for versatile towing.

Key Features

• ✔ Self-contained 10″ hydraulic surge drum brake system
• ✔ Tows small, medium, and large vehicles up to 4,900 lbs
• ✔ 79.5″ wide pan accommodates most modern car widths
• ✔ Powder-coated frame with steel fenders and LED lighting
• ✔ DOT-approved and factory pre-wired
• ✔ Teflon swivel pan for easy turns without binding
• ✔ Free backing plates included

Specifications

• Overall Dimensions: 123” L x 102” W x 27.25” H
• Empty Weight: 475 lbs
• Cargo Capacity: 3,000 lbs
• Gross Vehicle Tow Rating: 4,900 lbs
• Coupler: 2″ | Hitch Height: 17″
• Tire Size: ST205/75-D14 | 65 psi Cold
• Includes: 6,500 lb winches, 12,000 lb straps, safety chains
• Frame Finish: Durable black powder coat

What’s Included?

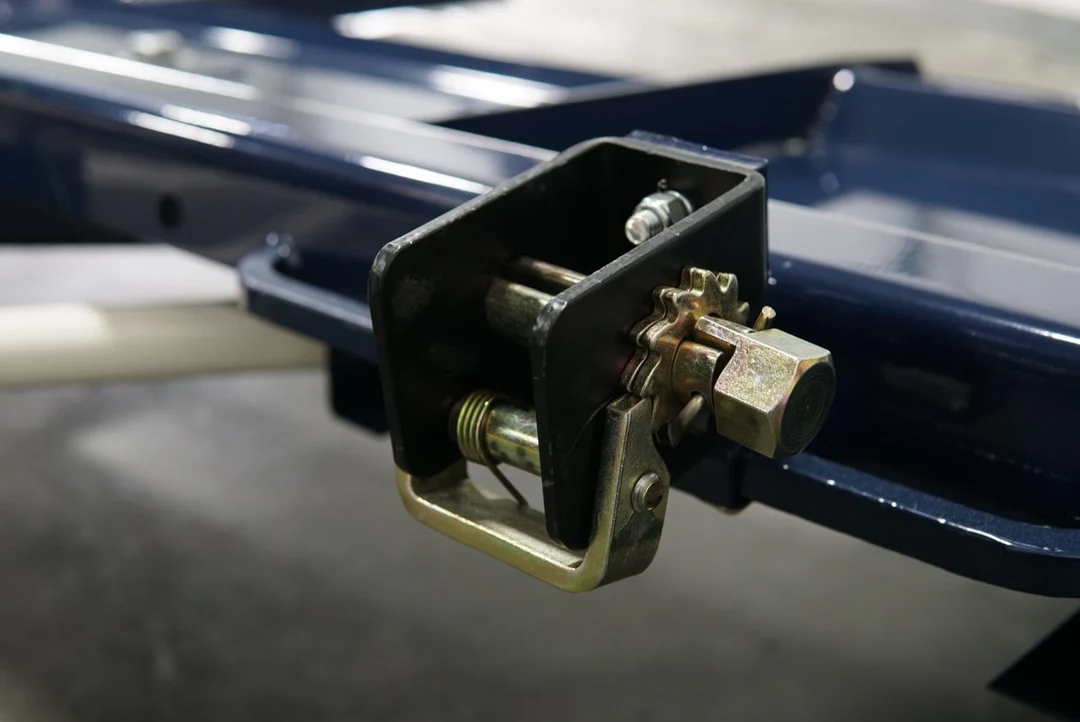

• • Straps & lashing winches
• • Safety chains & wiring harness

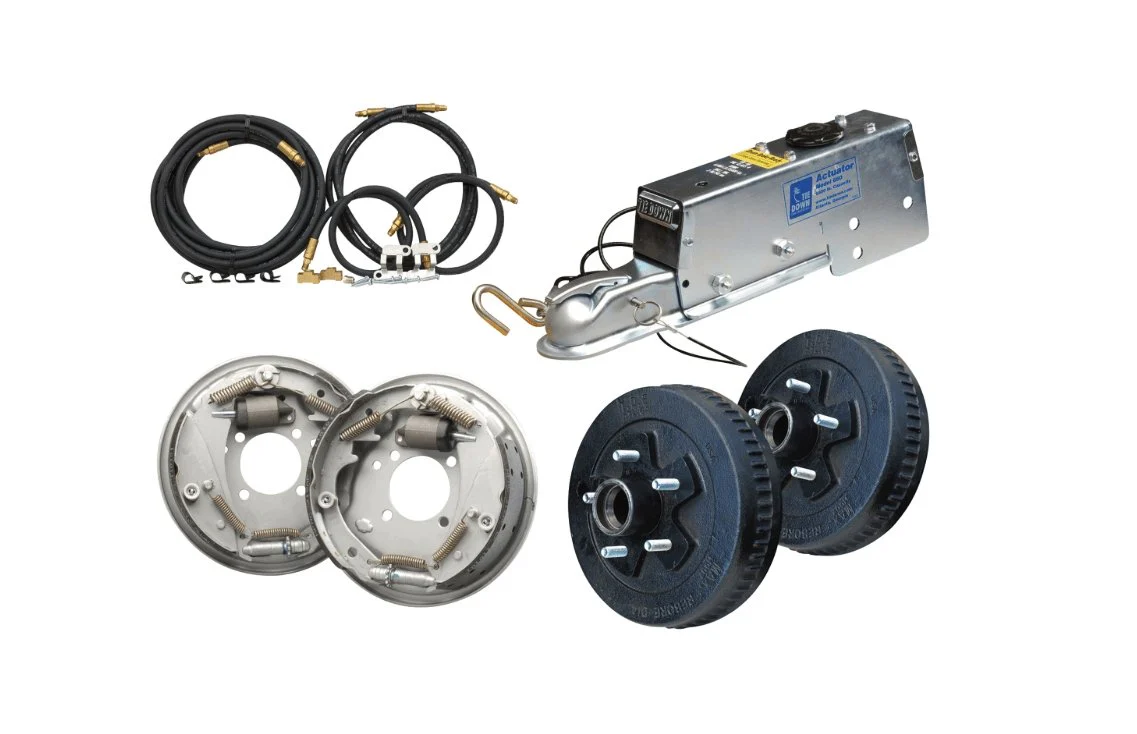

• • 10″ surge drum brakes with actuator
• • VIN & title included
• • Assembly required if shipped

Shipping Options

• Terminal Delivery: $499 (CA, OR, WA, NV, AZ, UT, ID) via XPO Logistics
• Residential Delivery: Flatbed curbside service available – starting at $499–$700
• Local Pickup: Santa Fe Springs, CA – unassembled
