Stand Up Tow Dolly With Surge Disc Brakes

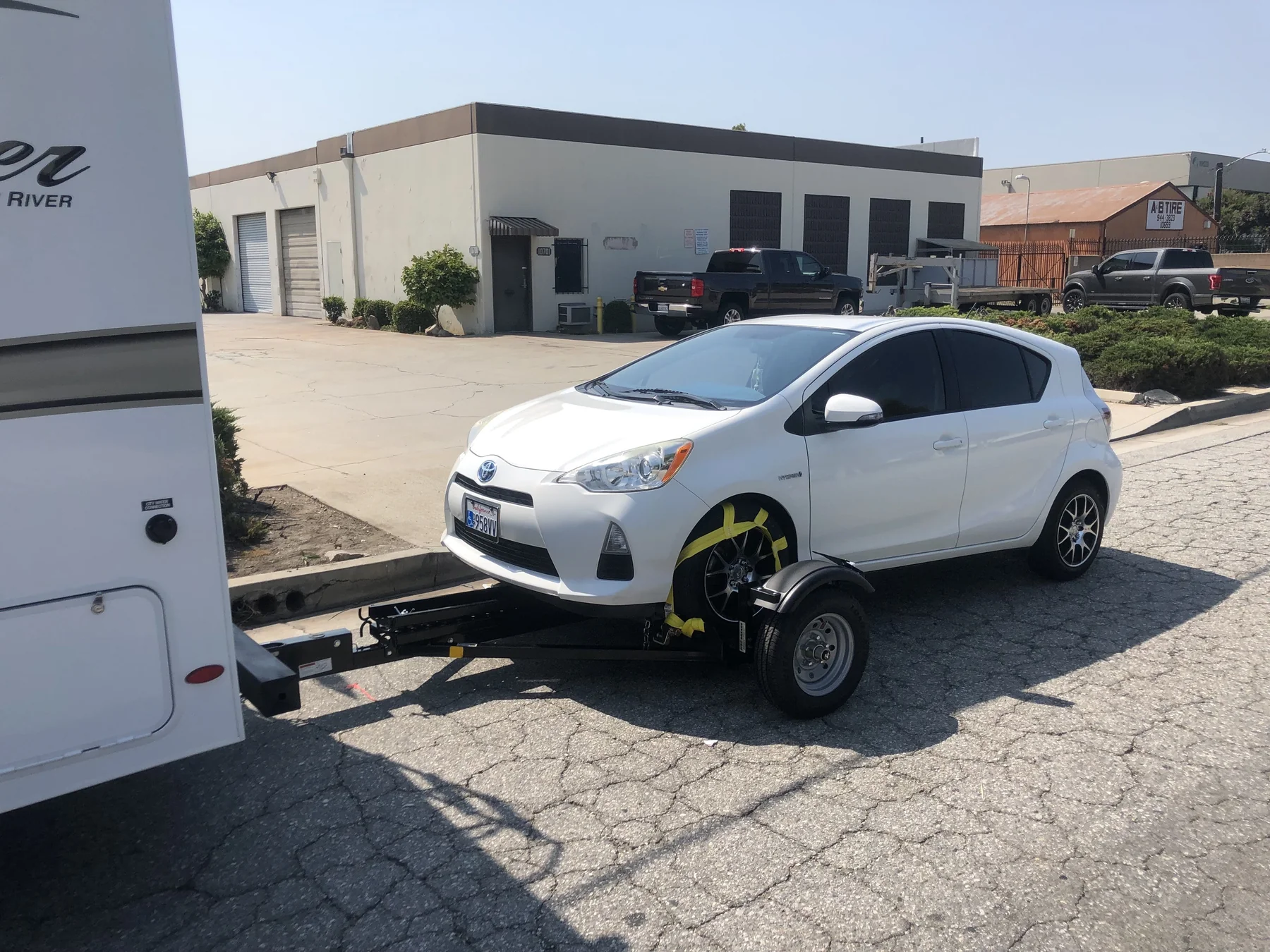

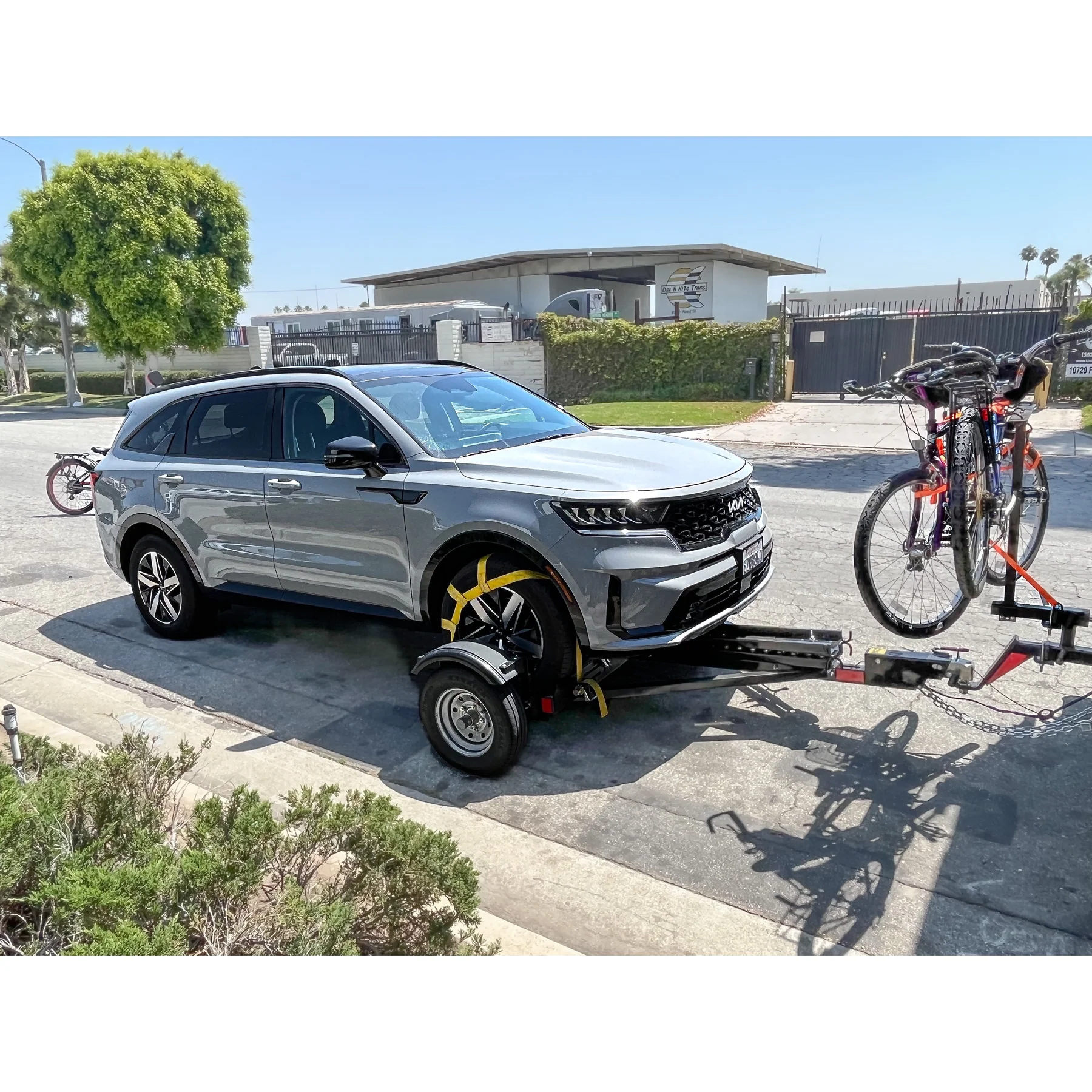

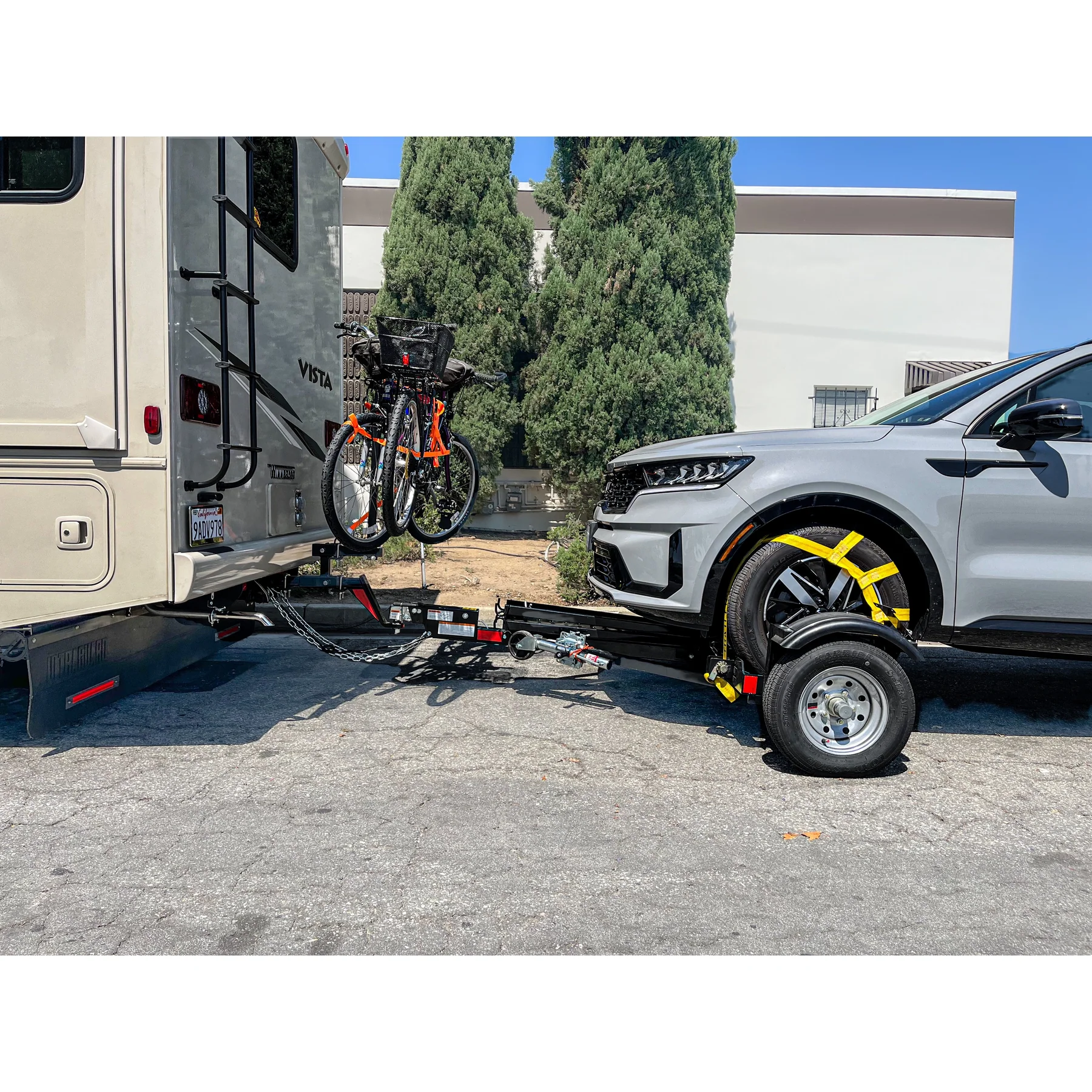

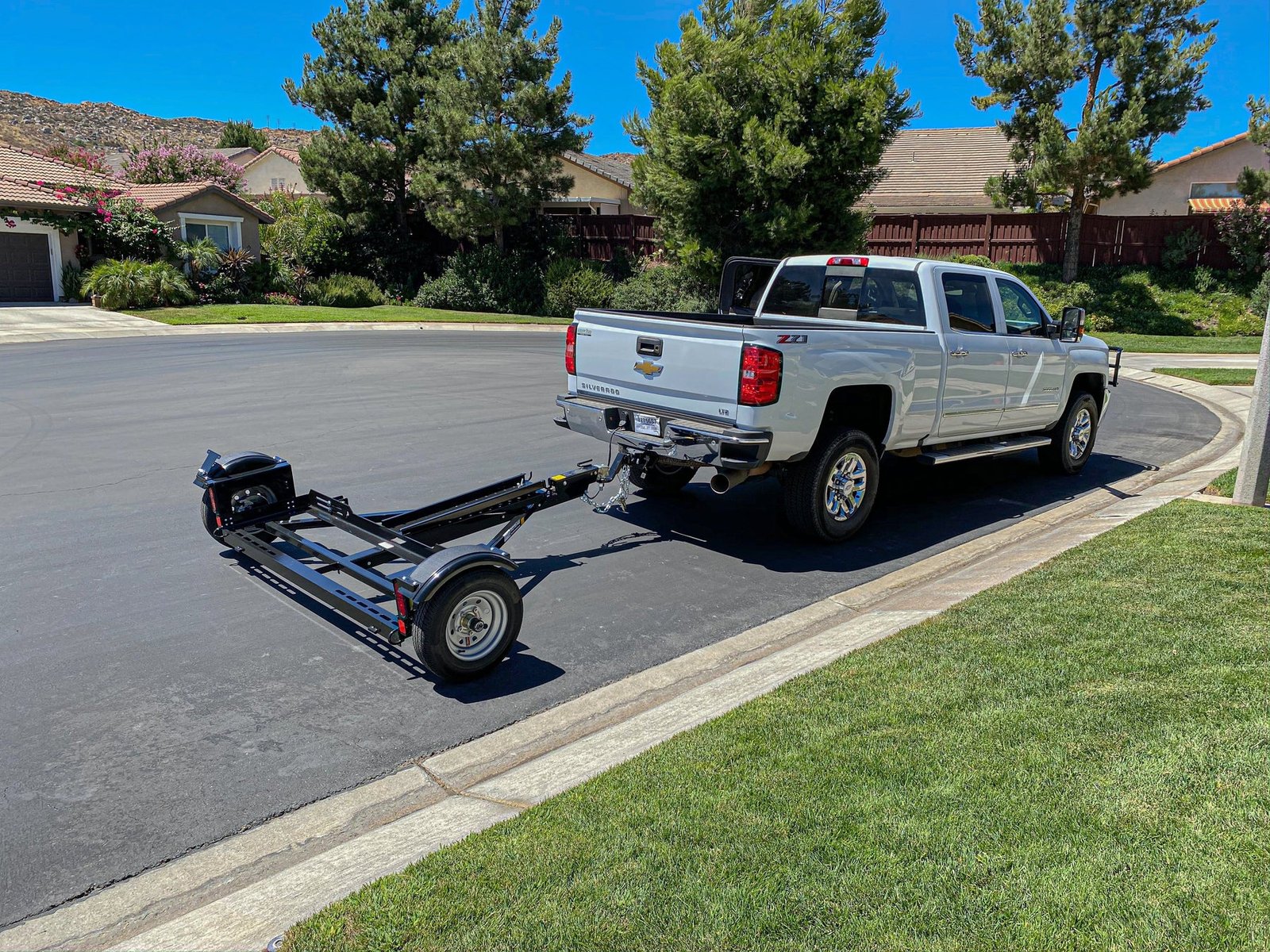

Made in the USA and built for power, safety, and compact storage, the Stand-Up EZ Haul Car Tow Dolly with Surge Disc Brakes provides unmatched versatility for transporting cars, vans, and SUVs up to 5,000 lbs. Equipped with a hydraulic surge braking system and stand-up storage design, it offers all the convenience and performance you need in one reliable solution.

Hydraulic Surge Braking System

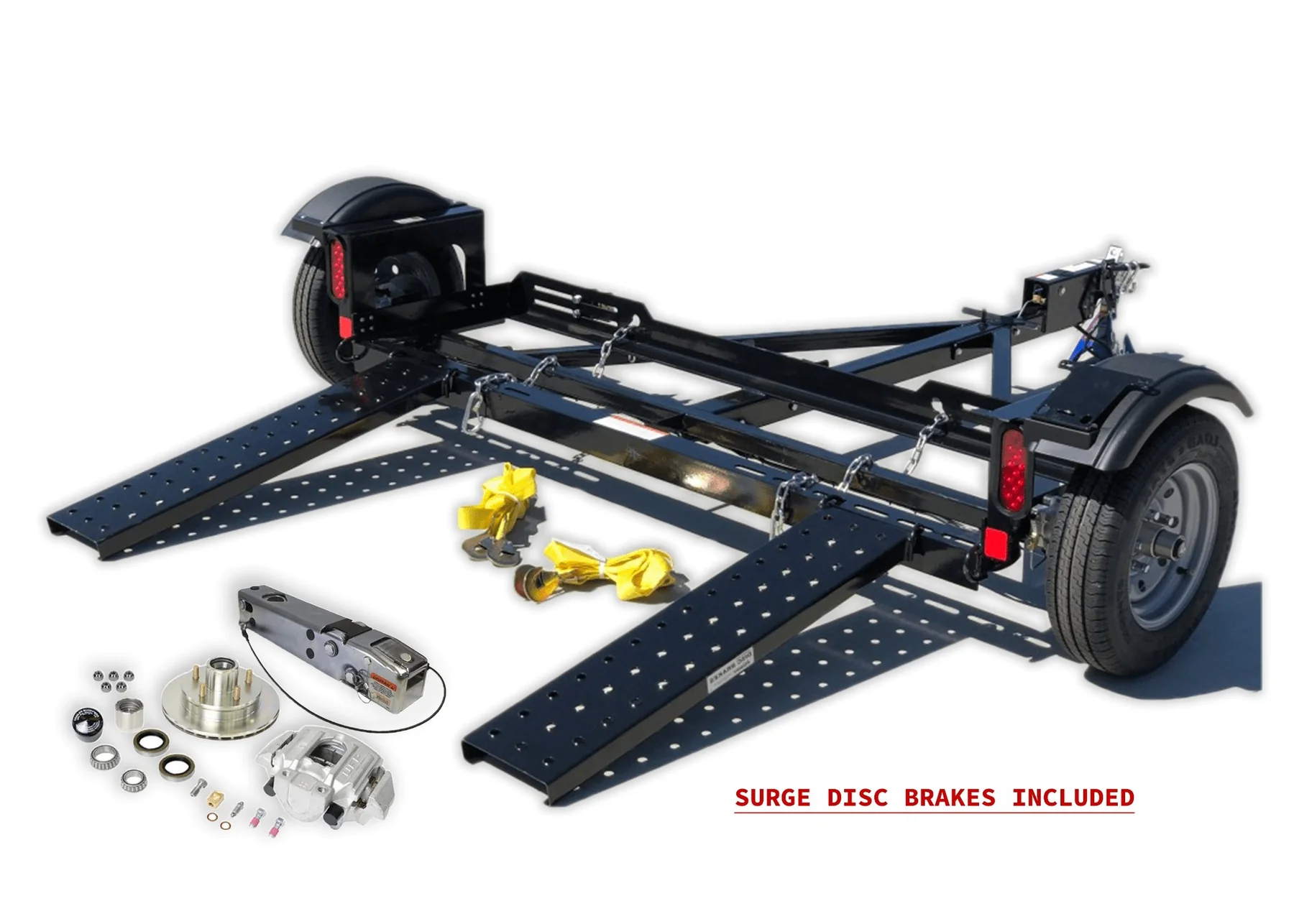

Featuring Trailer Buddy surge disc brakes, this dolly’s braking system is self-contained, self-adjusting, and low maintenance. As your tow vehicle slows, pressure from the dolly activates the brakes automatically—making for a smoother, safer ride with zero extra effort required from the driver.

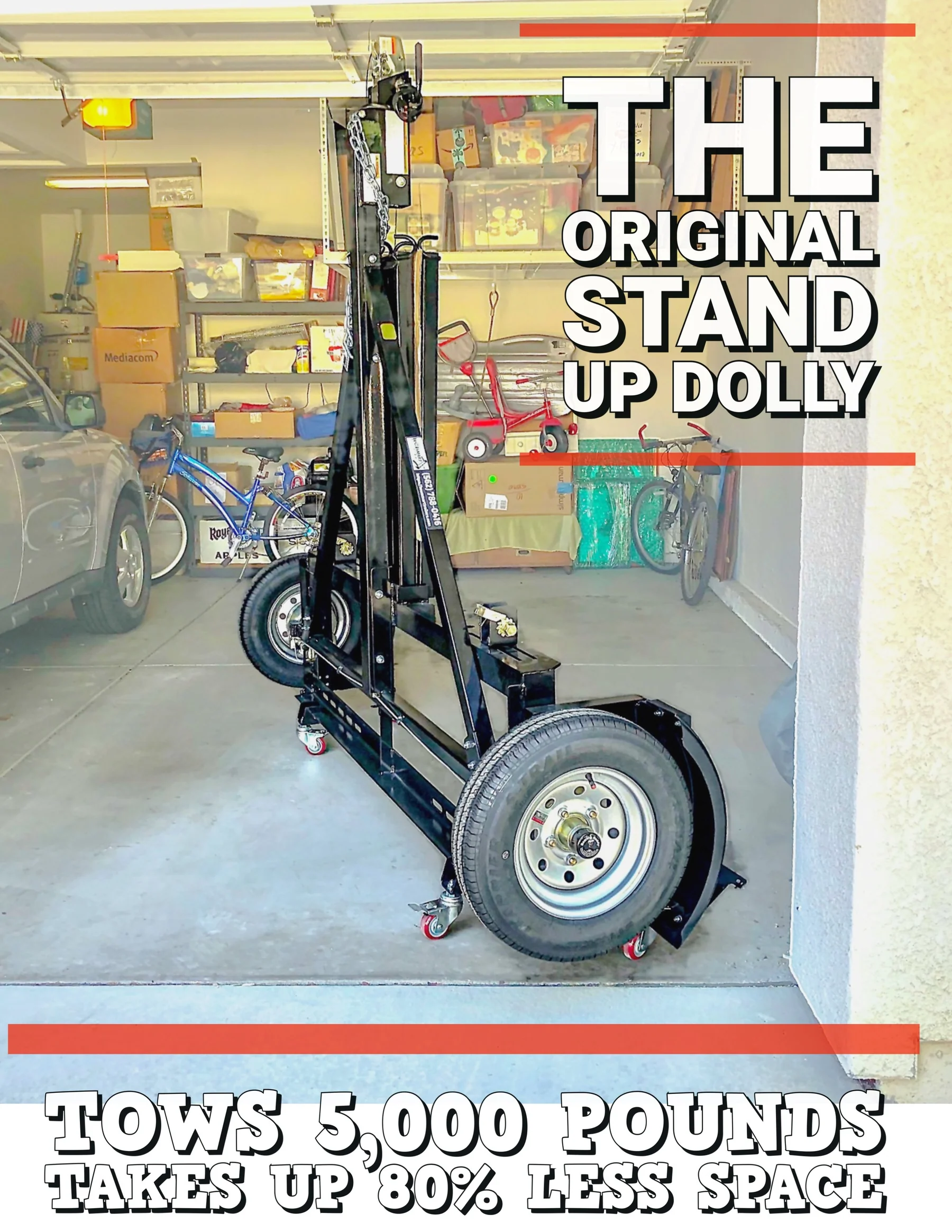

Stand-Up Storage & Lightweight Frame

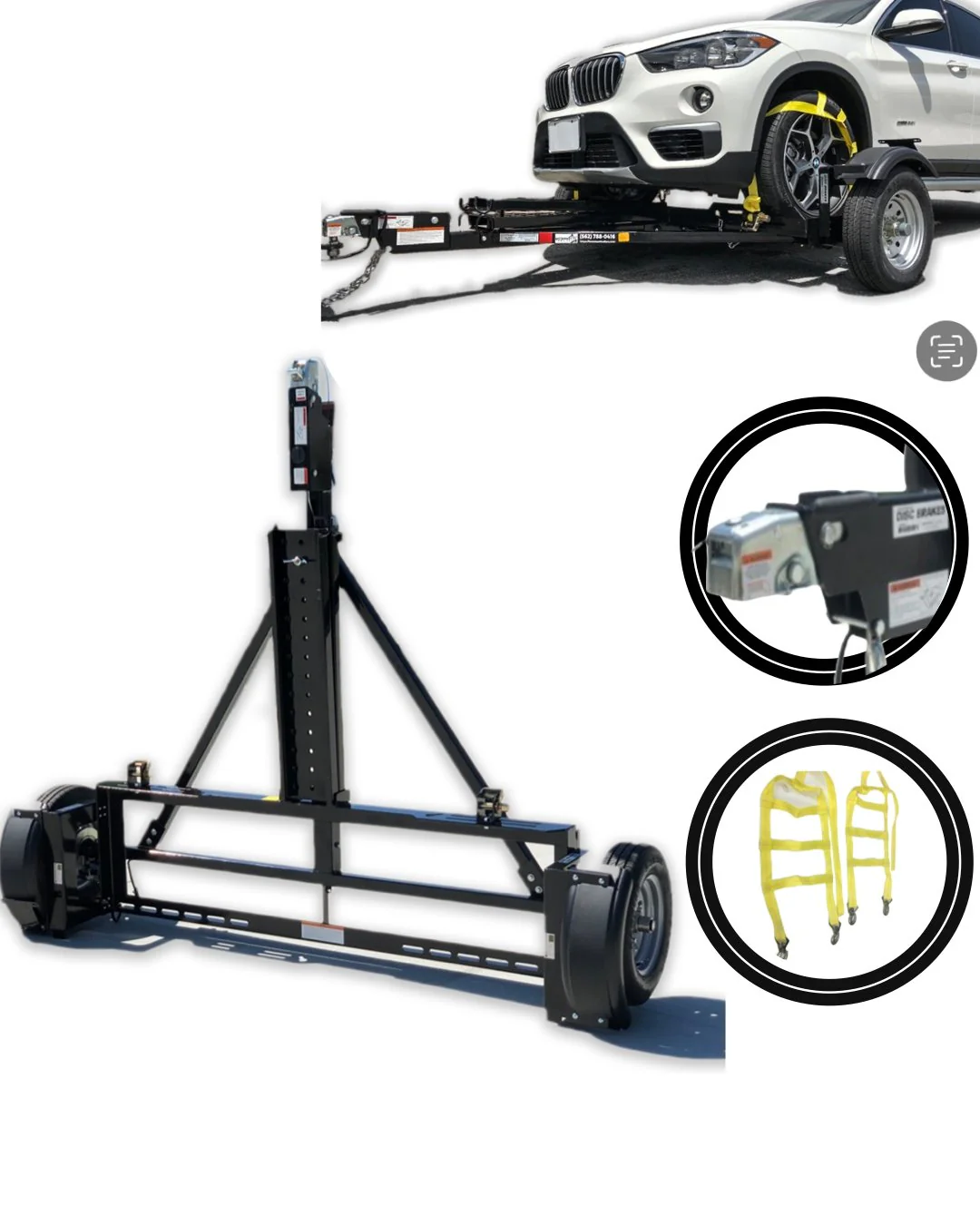

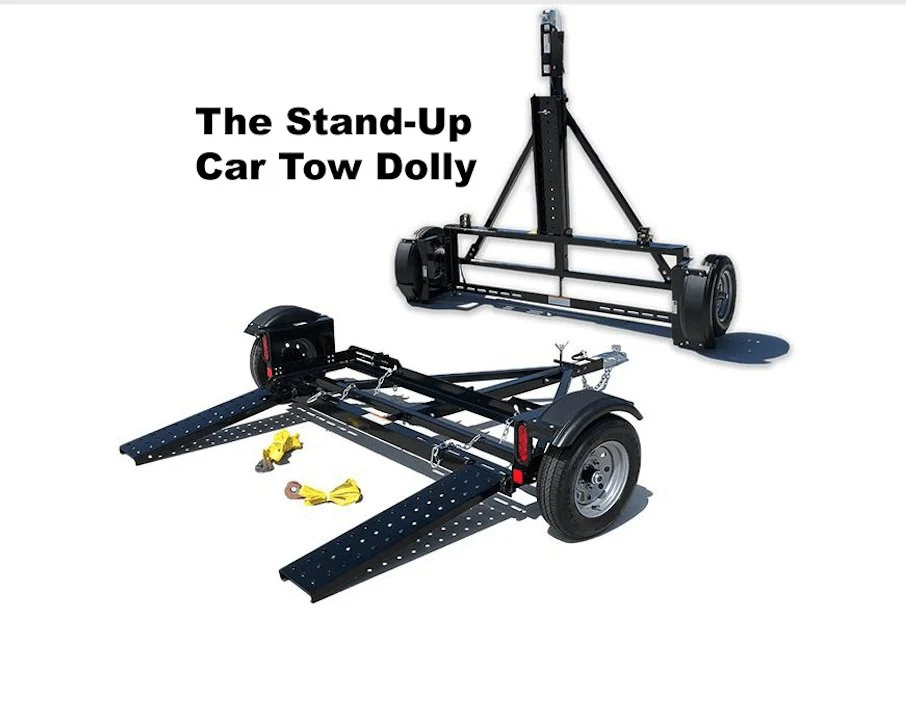

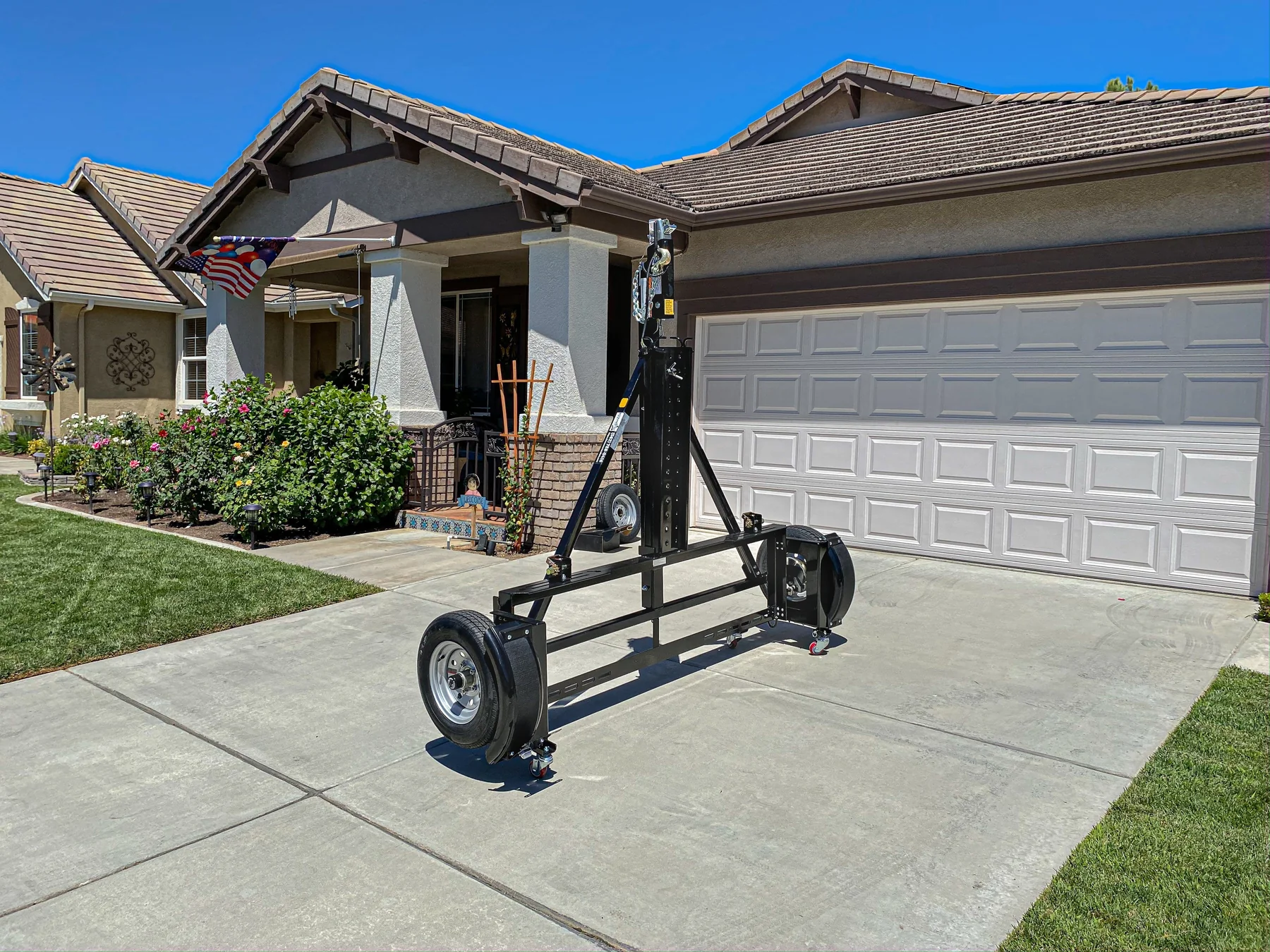

This dolly stands upright without the need for stabilizers or wall support, minimizing your storage footprint. The lightweight steel frame makes solo setup, towing, and storage effortless—even with the added braking system.

Built for Long-Term Durability

With a tubular steel frame, steel mesh deck, and powder-coated finish, this dolly is engineered for durability and corrosion resistance. It’s ready for cross-country hauls or local transport alike.

Key Features

• Hydraulic surge disc braking system
• Unique stand-up design stores vertically without assistance
• 330–380 lb lightweight tubular steel frame
• 10-ply radial tires (ST145 R12) — E rated
• Powder-coated finish for corrosion resistance
• Stow-away ramps fit various wheelbases
• LED DOT-approved lighting, ramp tie-down nut & breakaway cable

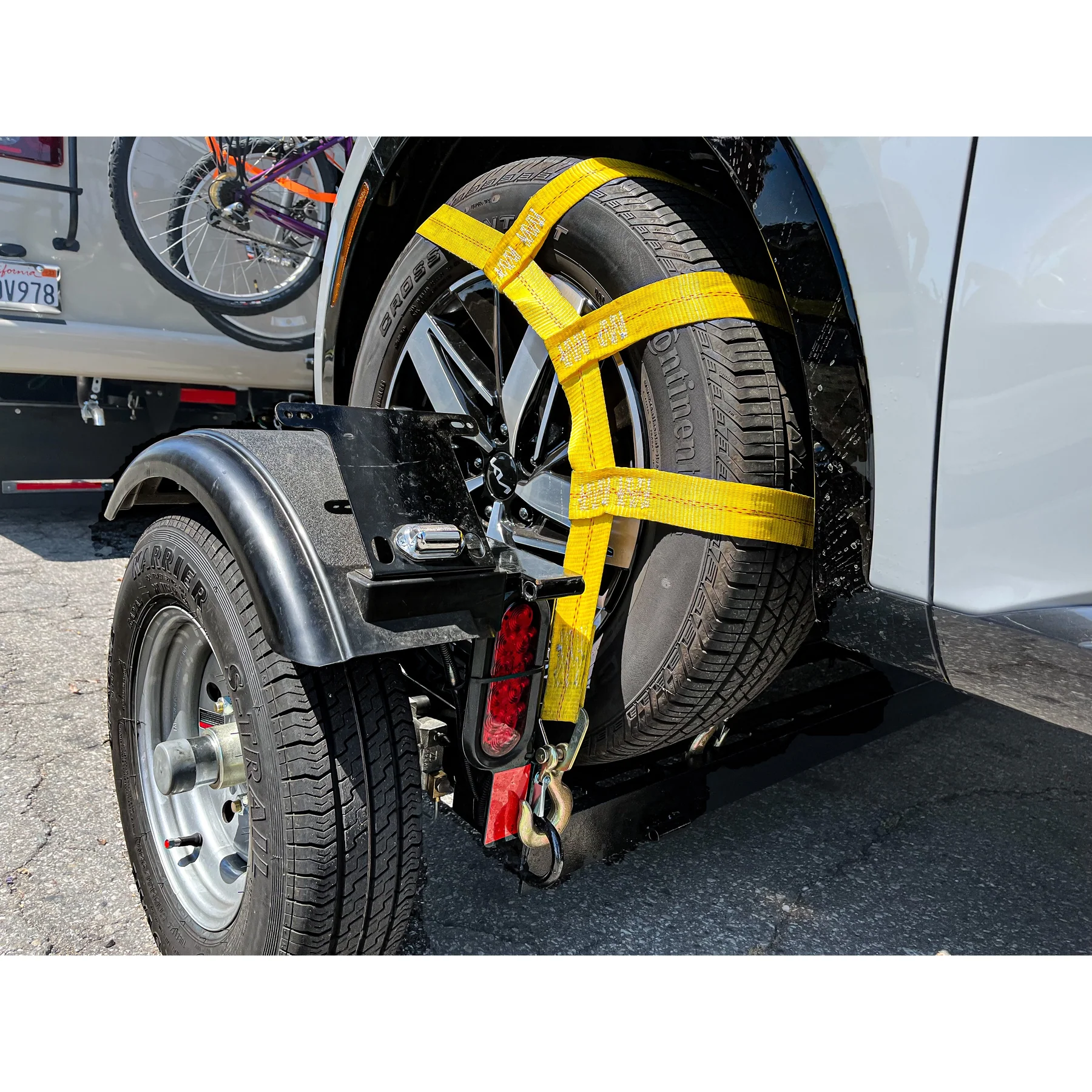

• Includes winches, tie-down straps, and safety chains

Specifications

• Overall Dimensions: 84″L x 102″W x 25″H
• Storage Dimensions: 25″L x 102″W x 84″H
• Cradle: 22″L x 80″W
• Ramp Dimensions: 40″L x 9″W x 2″H
• Tire Size: ST145 R12 Radial | 10 Ply | 80 PSI
• Hitch Height: 12″–16″ | Ball Size: 2″
• Connector: Flat 4
• Brakes: Hydraulic Disc (Surge)
• Weight: 380 lbs
• Towing Capacity: 5,000 lbs (curb weight)

Requirements

• Flat 4 electrical connector
• 2″ ball coupler
• 12″–16″ tongue height

Warranty

Includes a 6-month limited warranty. Optional 1-year warranty available at checkout.
