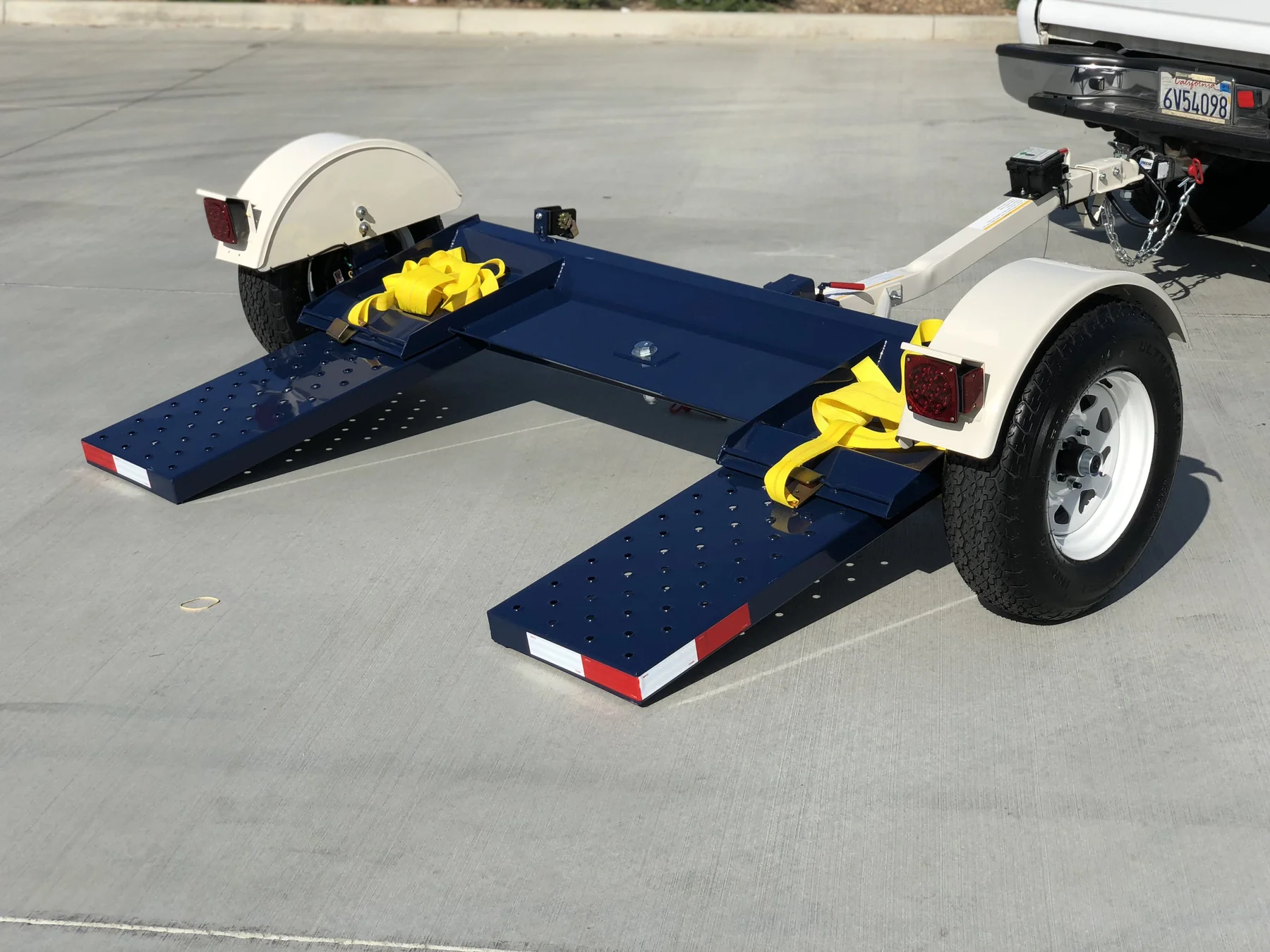

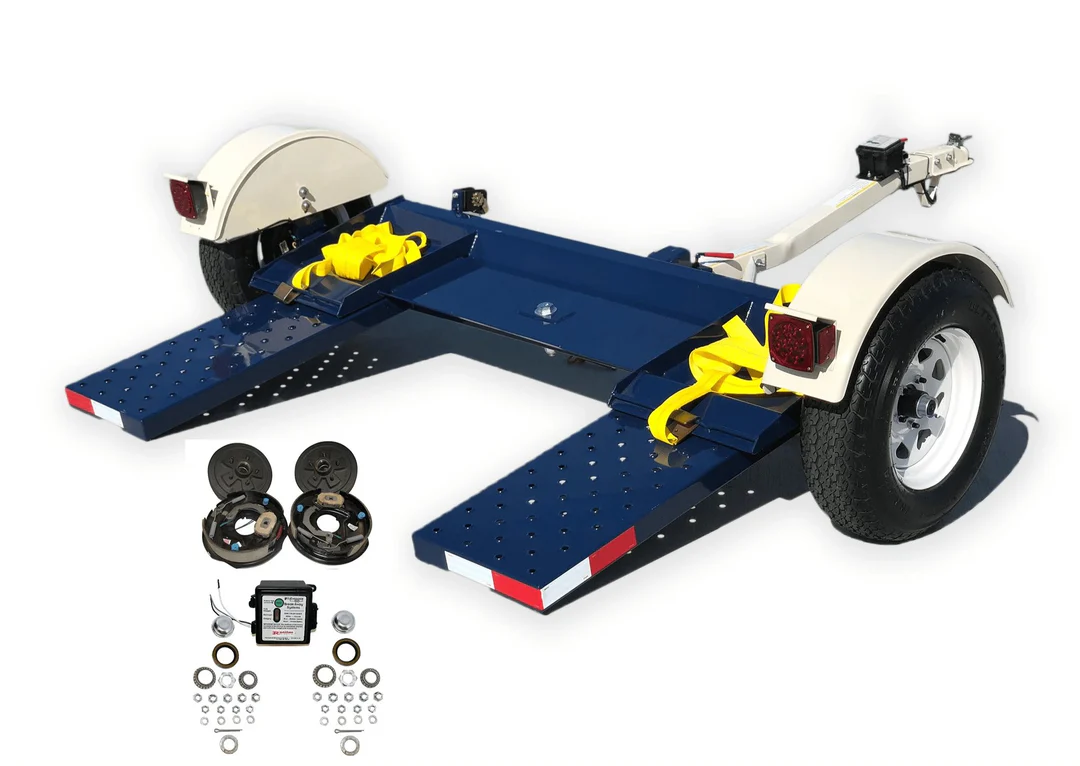

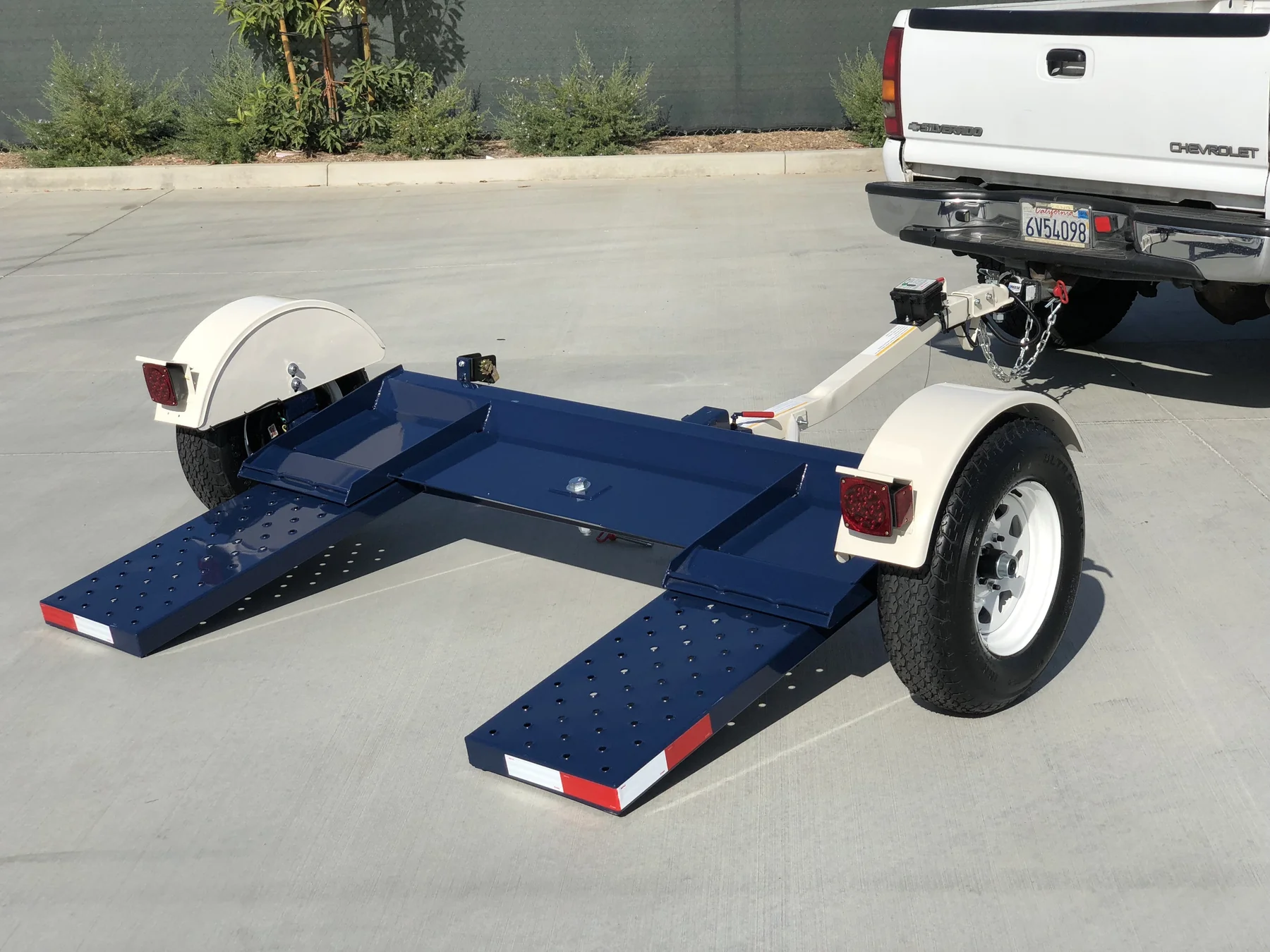

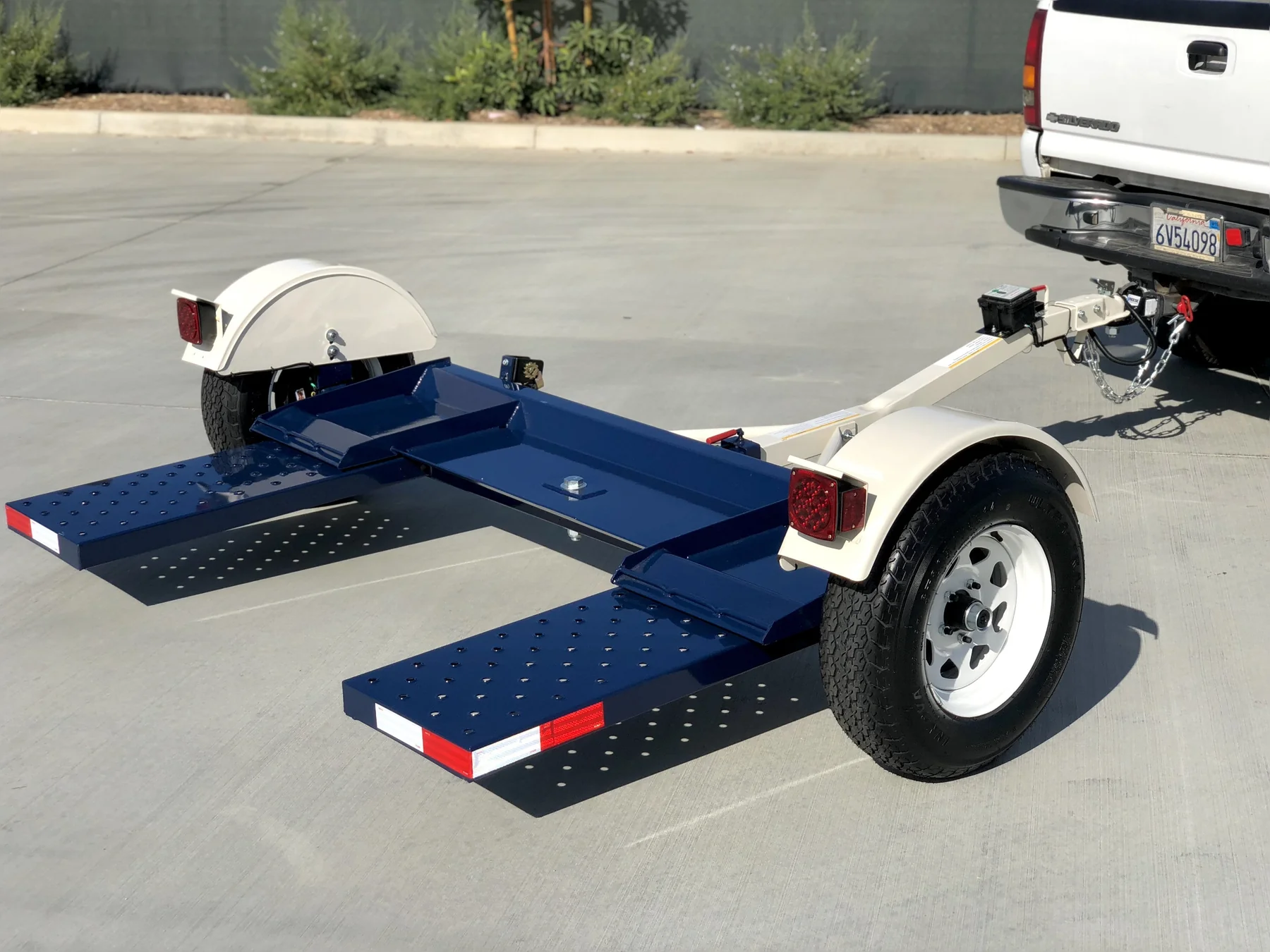

Car Tow Dolly with Electric Brakes

Designed for safety, stability, and compatibility, our Electric Brake Car Tow Dolly features a heavy-duty steel frame, electric drum brakes, and a wide swivel pan. With its included breakaway kit and LED DOT-approved lighting, it’s built for confident, long-distance towing.

Key Features

• ✔ 10” electric drum brakes with breakaway safety system
• ✔ 79.5” max / 43.75” min pan width – accommodates a wide range of vehicles
• ✔ Tilt-down ramps and swivel pan for easy loading and turning

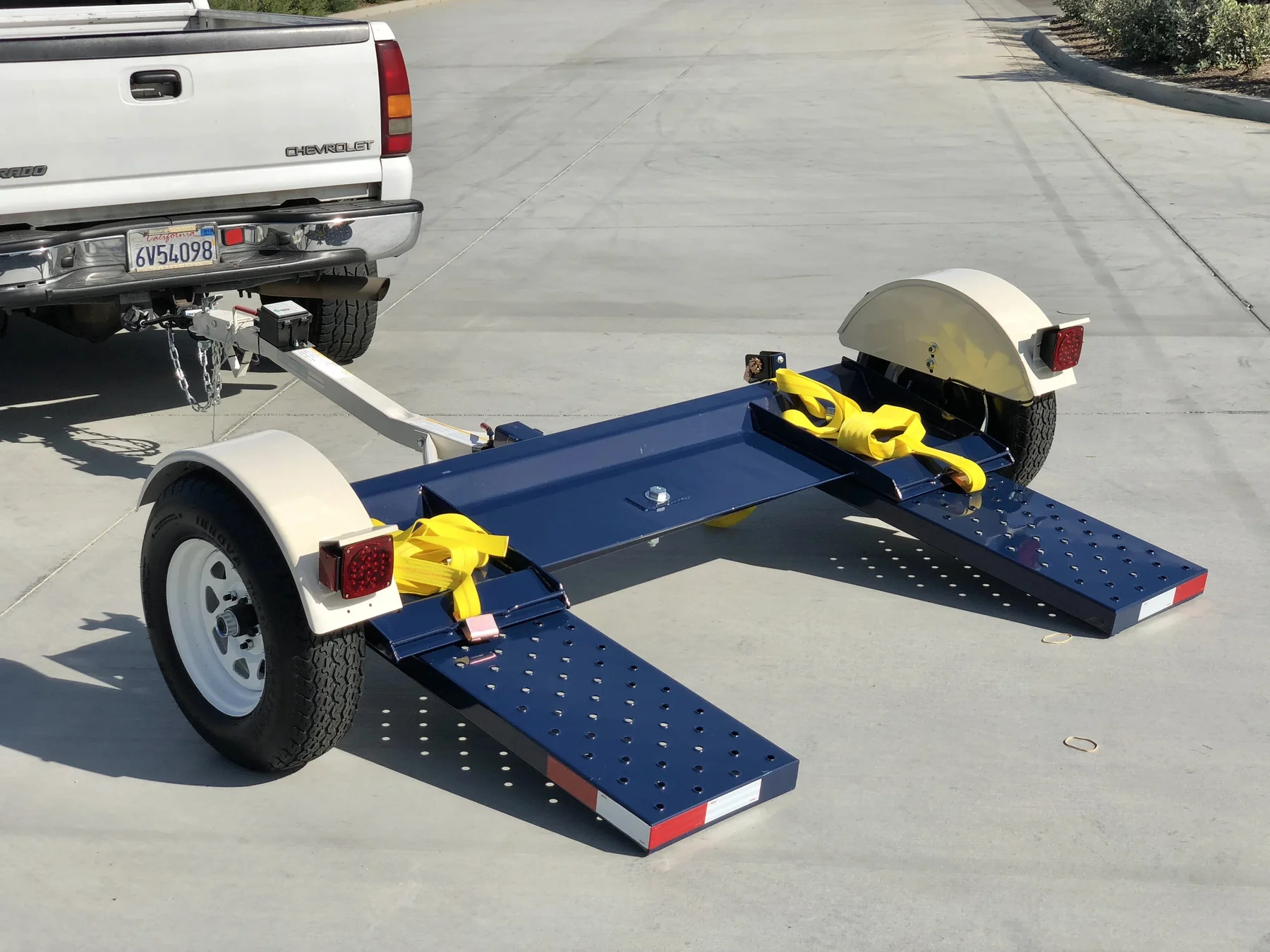

• ✔ 6,500 lb lashing winches and 12,000 lb-rated tire nets included

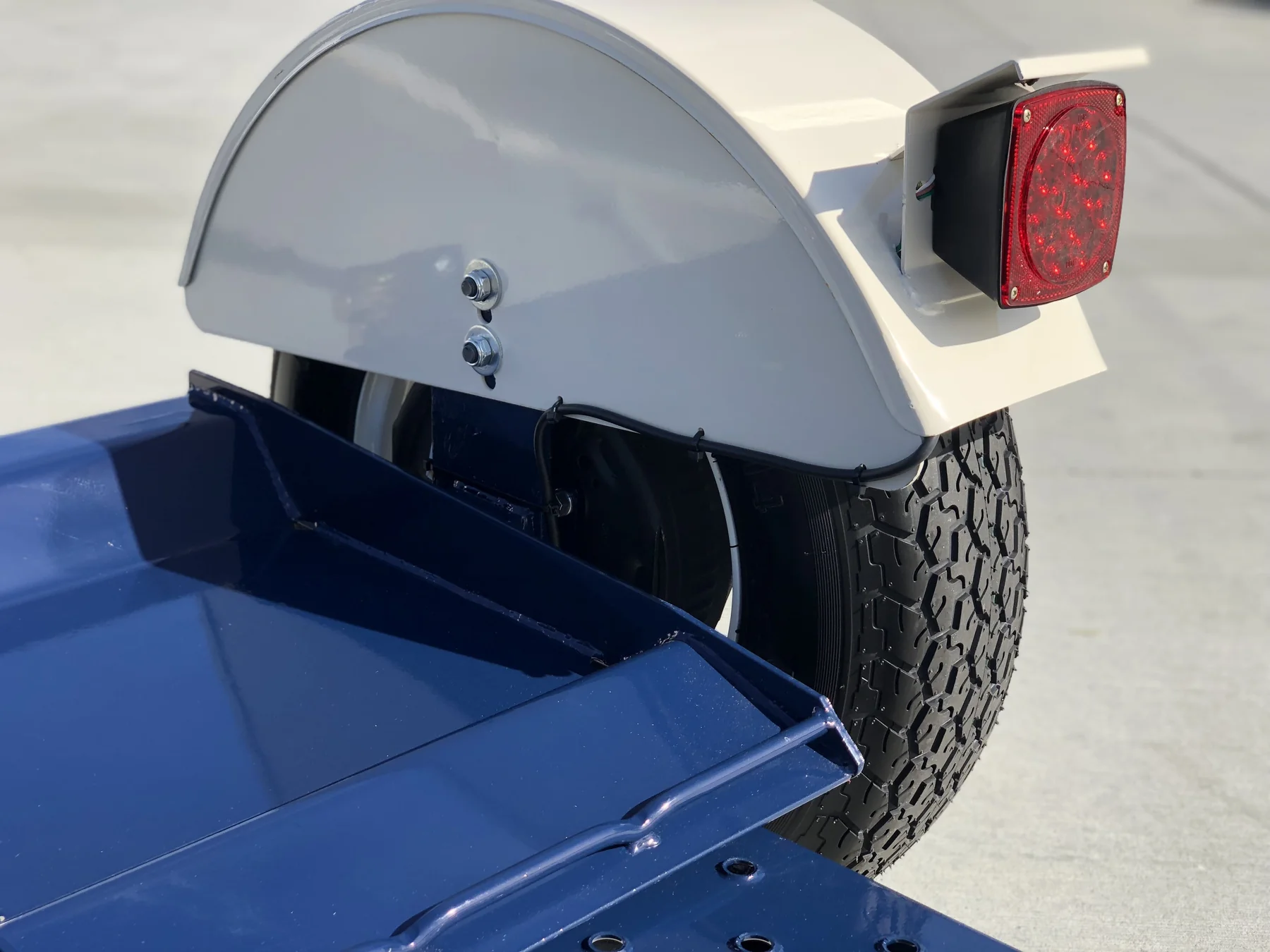

• ✔ DOT-approved LED lighting + powder-coated steel fenders

Specifications

• Overall Dimensions: 123” L x 102” W x 27.25” H
• Empty Weight: 475 lbs
• Max Load Capacity (Axle): 3,000 lbs
• Max Tow Capacity (Vehicle): 4,900 lbs

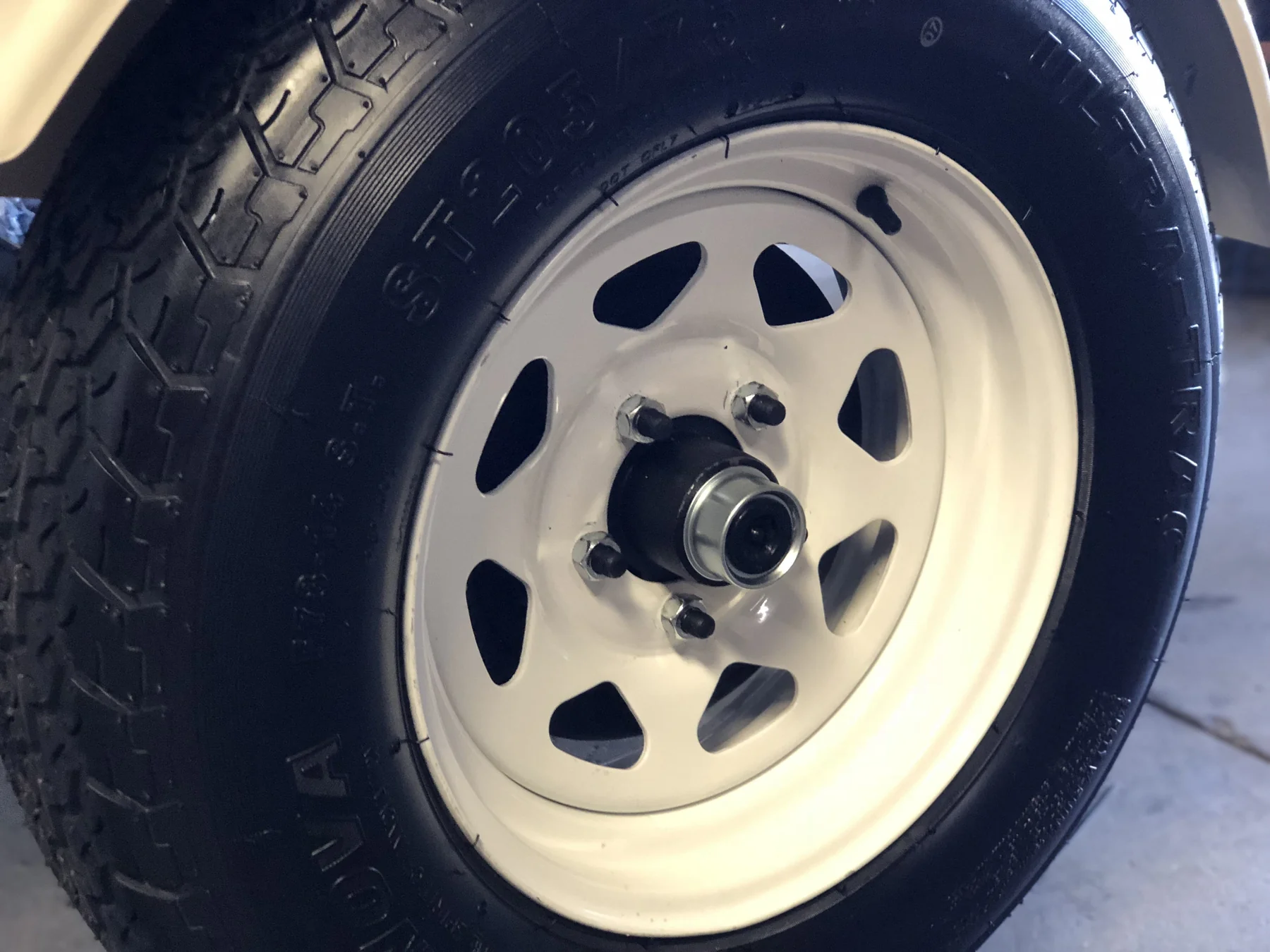

• Tire Size: ST205/75 D14 | Tire Pressure: 65 psi
• Coupler: 2″ | Frame: Powder-coated steel

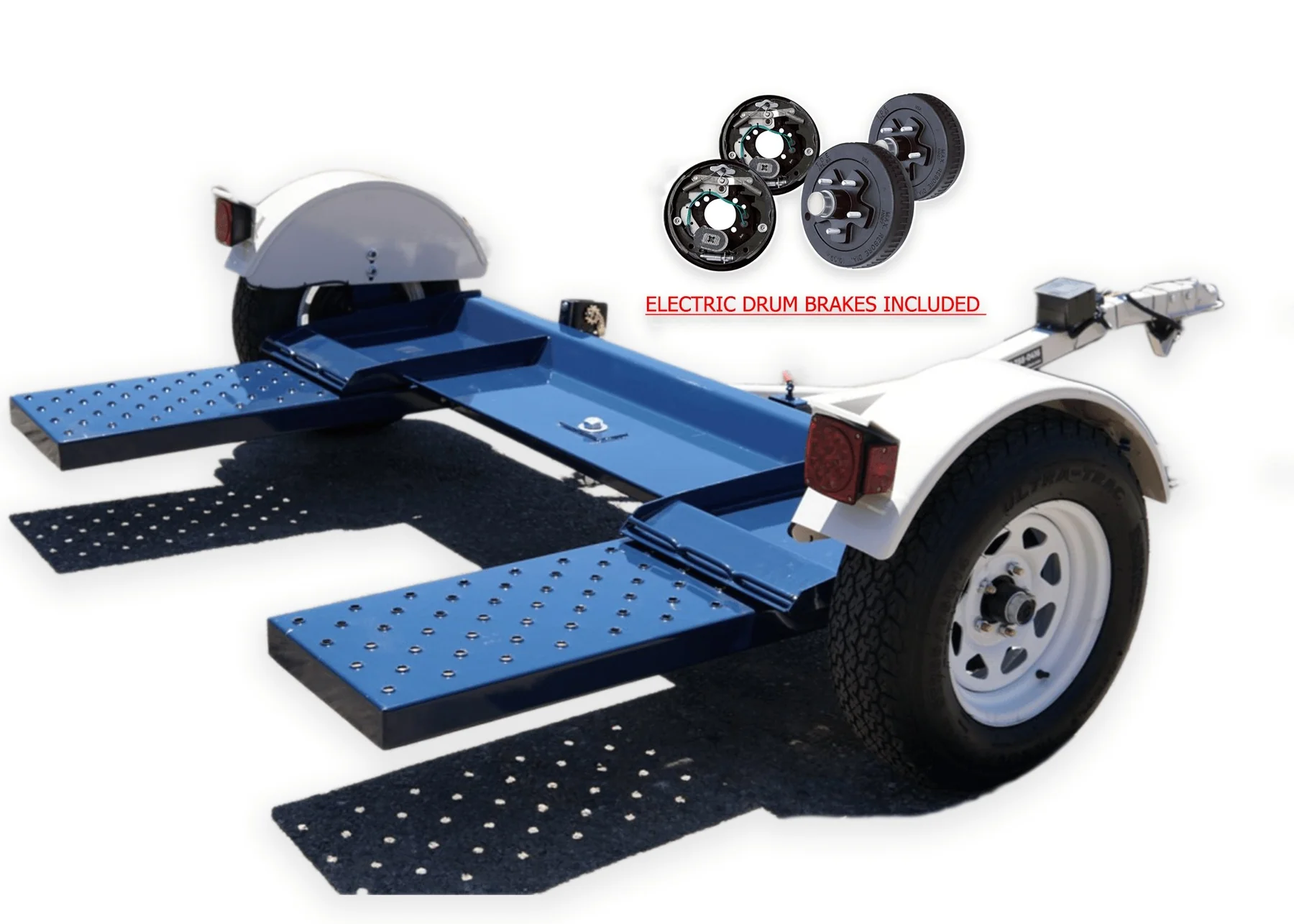

• Brake Type: 10” Electric Drum w/ bolt-on installation
• Swivel Pan Width: 79.5″ max, 43.75″ min

Electric Brake System

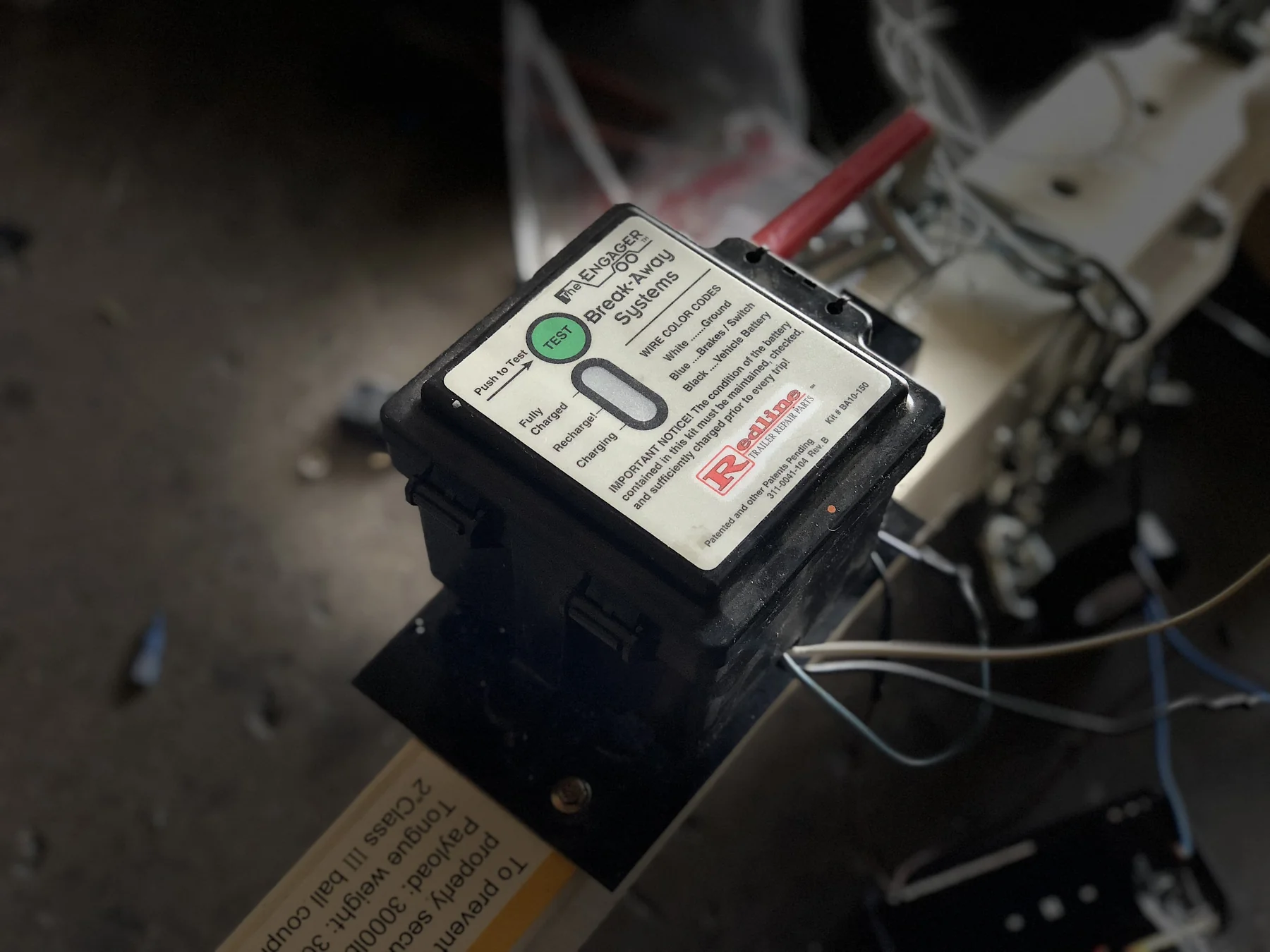

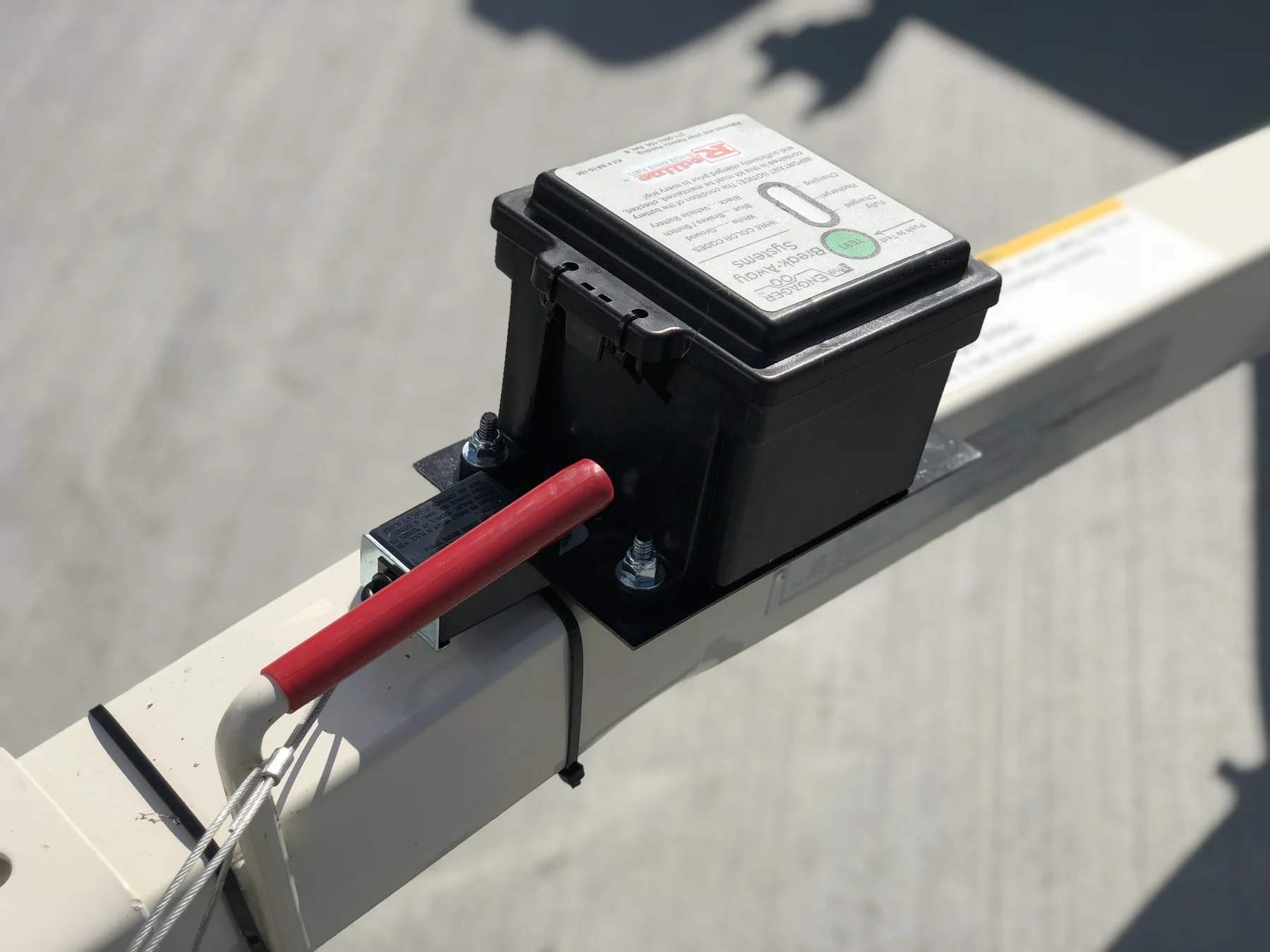

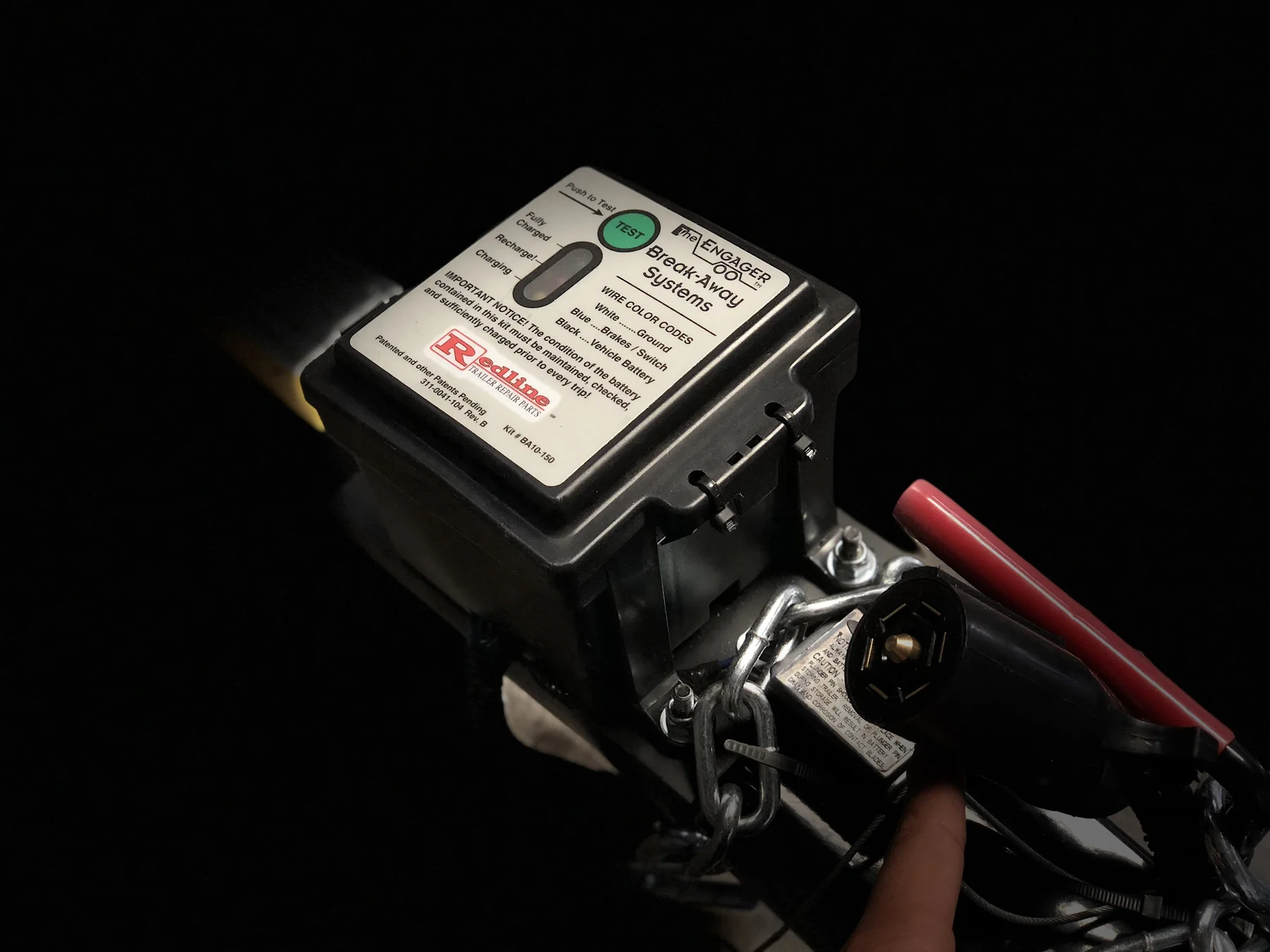

This model includes a bolt-on 10″ electric drum brake system with breakaway functionality. An electric brake controller (sold separately) is required in your tow vehicle to activate the brakes. The system helps reduce sway, provides better stopping power, and adds an extra layer of safety in the event of disconnection.

Shipping & Availability

• Flat Rate Terminal Shipping: $499 – Ships to CA, OR, WA, NV, AZ, UT & ID
• Home Delivery: Curbside flatbed delivery now available ($499–$700)
• Pickup Option: Pick up unassembled from Santa Fe Springs, CA
• Ships in 2–3 business days | Transit time: 2–4 business days

Requirements

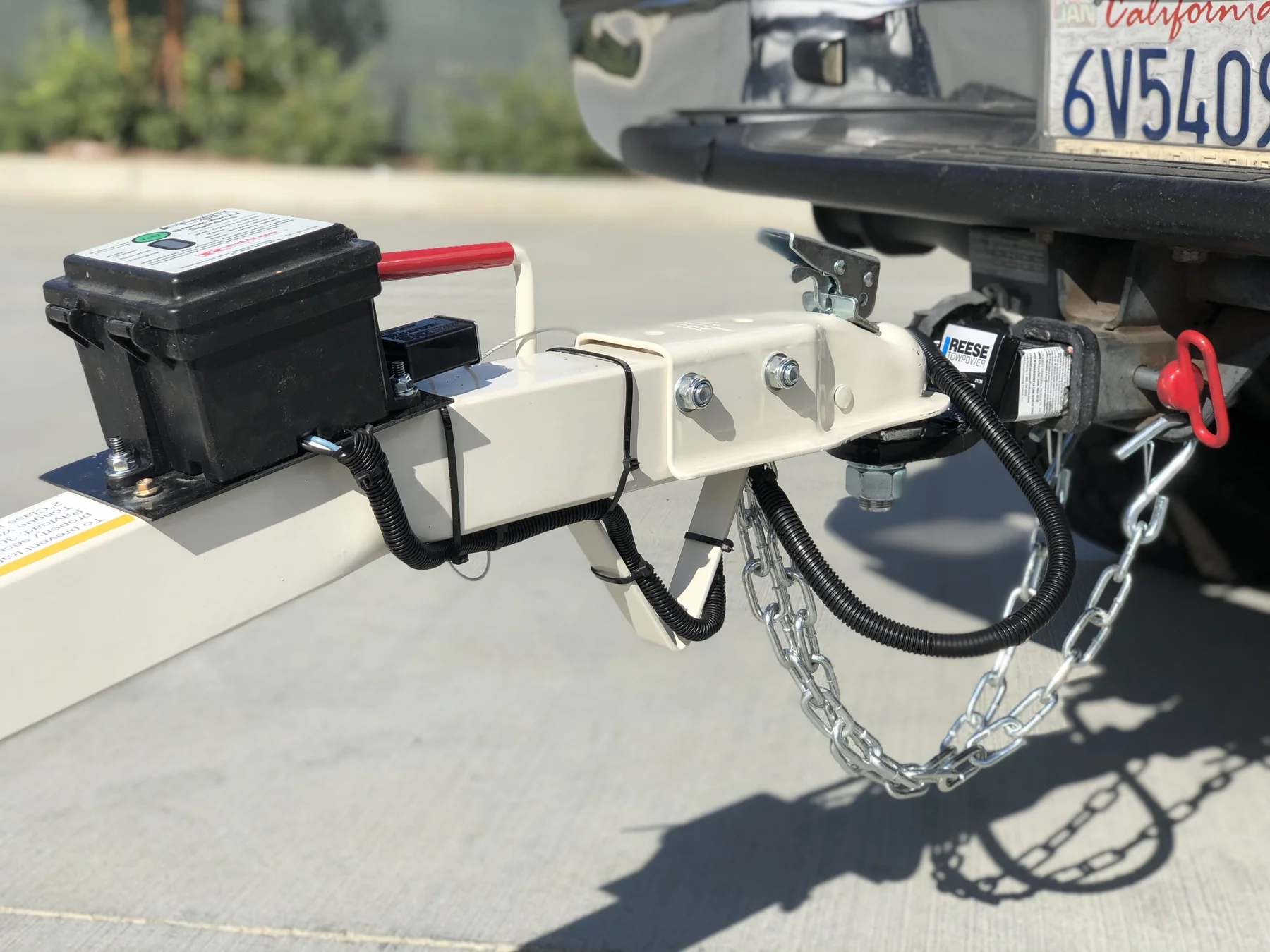

• Flat 4 Connector & 2″ Ball Coupler
• 15″–19″ Tongue Height
• Electric Brake Controller (required for operation)
